          NTW-1000 TWO-WAY



              Published on: 2020-09-11

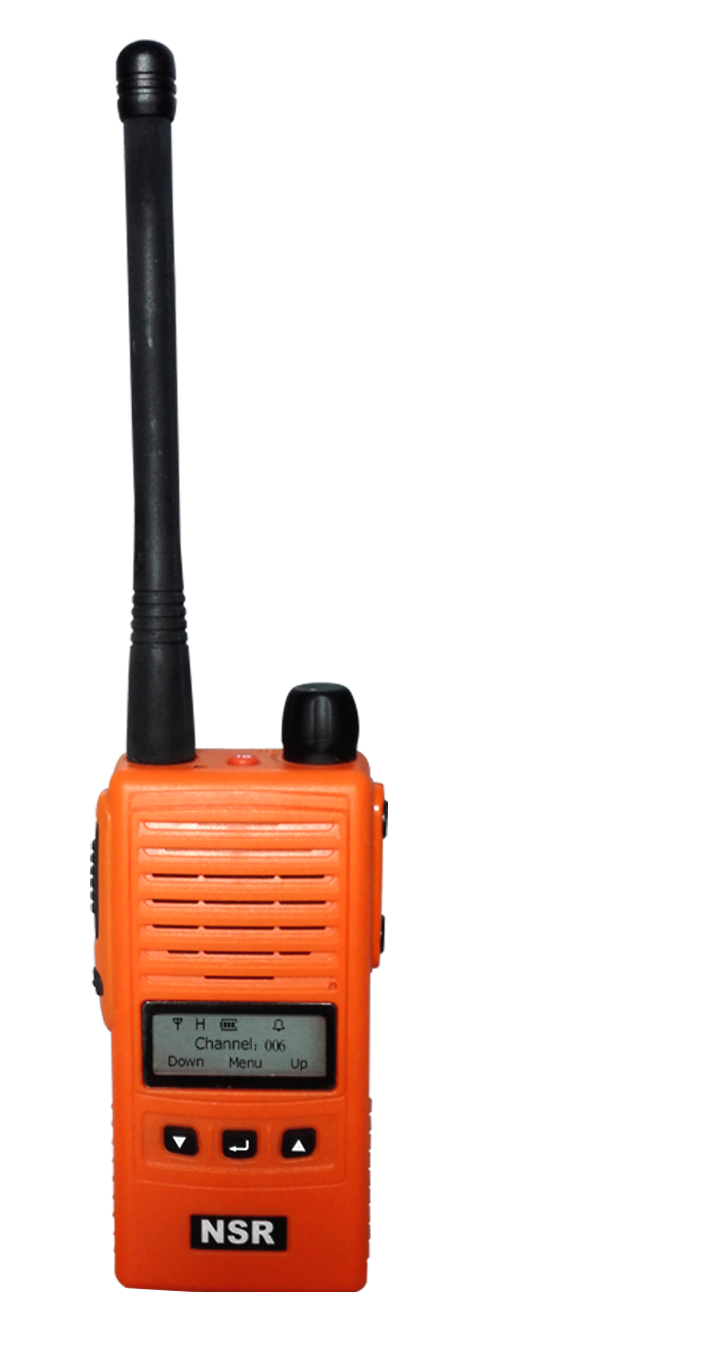

          NTW-1000 TWO WAY DADIO 20240425.png【FEATURES】
          - Compact, lightweight and rugged construction.
          - Easy operation, even for unskilled personnel.
          - Full marine-use VHF channels.
          - Designed to meet GMDSS requirements related to performance standards  for survival craft  two-way VHF radiotelephone apparatus,
          such as IMO MSC.515(105) and IEC 61097-12.
          - CCS type approval.
          - DNV type approval.



          【SPECIFICATIONS】
          Technical Specifications
           Frequency Range:
          156.025～157.425 MHz (TX)
          156.050～162.000 MHz (RX)
           Operating Channels:         19 channels (default)
           Operating Hours: ≥8 hours ( TX10%, RX10%, Standby80% )
           Output Power: High 3.0W / Low 0.5w
           Battery Requirements (NBT200)
           Storage Time:  max 4 years on board (see Note 1)
           Storage Temp.:
          		 -40℃～+70℃
           Compass Safe Distance: 0.2m
           Dimension & Weight
           Dimension:   256(H) × 51.4(W) × 46.2(D) mm
           Weight:   200g (Transceiver+Antenna+Emergency Battery)

           *Note1: It is recommended that the battery can be stored at the dealer/agent max 1 year since purchased and it should be replaced in 4 years after supplied to a vessel.



          NSR NTW-1000 TWO-WAY VHF RADIO BROCHURE.pdf
