【FEATURES】
- Capable of voice communication and DSC (digital selective calling) facilities as well.
- Conforming to the Class A standard set for MF/HF DSC by ITU and IMO regulation.
- Can be part of an onboard GMDSS package for vessels of A2, A3 and A4.

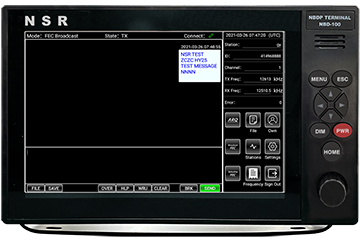

- Large 7-inch color display.
- Knob & touch screen operation.
- Marine communication handset.
- LAN network interface.
- SDR (Software Defined Radio) technology.
- Voice digitalized.
- Conforms to the regulations of ITU-R M.476-5, ITU-R M.492-6, ITU-R M.493-15, ITU-R M.541-10, IMO MSC.302 (87), IEC 61097-9, IEC 61097-3, IEC 60945, IEC 62923-1, IEC 62923-2 etc.
- CCS type approval.
- DNV type approval.
【SPECIFICATIONS】
| TX Frequency: | 1605.0-27500.0 kHz |
| RX Frequency: | 300.0-29999.99 kHz |
| Working Channel: | 400+ channels |
| Communication Mode: | Simplex/Semi-duplex |
| Emission Class: | J3E, H3E, A1A, F1B |
| TX Power: | 150W pep |
| RX Sensitivity: | J3E：≤2.5 μV（1605.0 - 27500.0 kHz） F1B：≤0.7 μV（1605.0 - 27500.0 kHz） A1A：≤1.4 μV （1605.0 - 27500.0 kHz） |
| DSC frequencies (kHz): | 2187.5, 4207.5, 6312.0, 8414.5, 12577.0, 16804.5 |
| Control Display: | 7-inch color display, touch screen |
| Interface: | LAN, BAM/INS (RS422), GNSS (RS422) |
| Antenna Impedance: | 50 Ω |
| IP Grade: | IP22: Control unit, Transceiver, Handset IP66: Antenna coupler |
| Operating Temperature: | -15° to 55°C (indoor parts) -25° to 55°C (outdoor part) |
| Compass Safe Distance: | Standard Compass: 1.20m, Steering Compass: 0.75m (Transceiver) Standard Compass: 1.25m, Steering Compass: 0.85m (Control Unit) |
| Power Supply: | DC24V (range 18V ~ 29V) |
