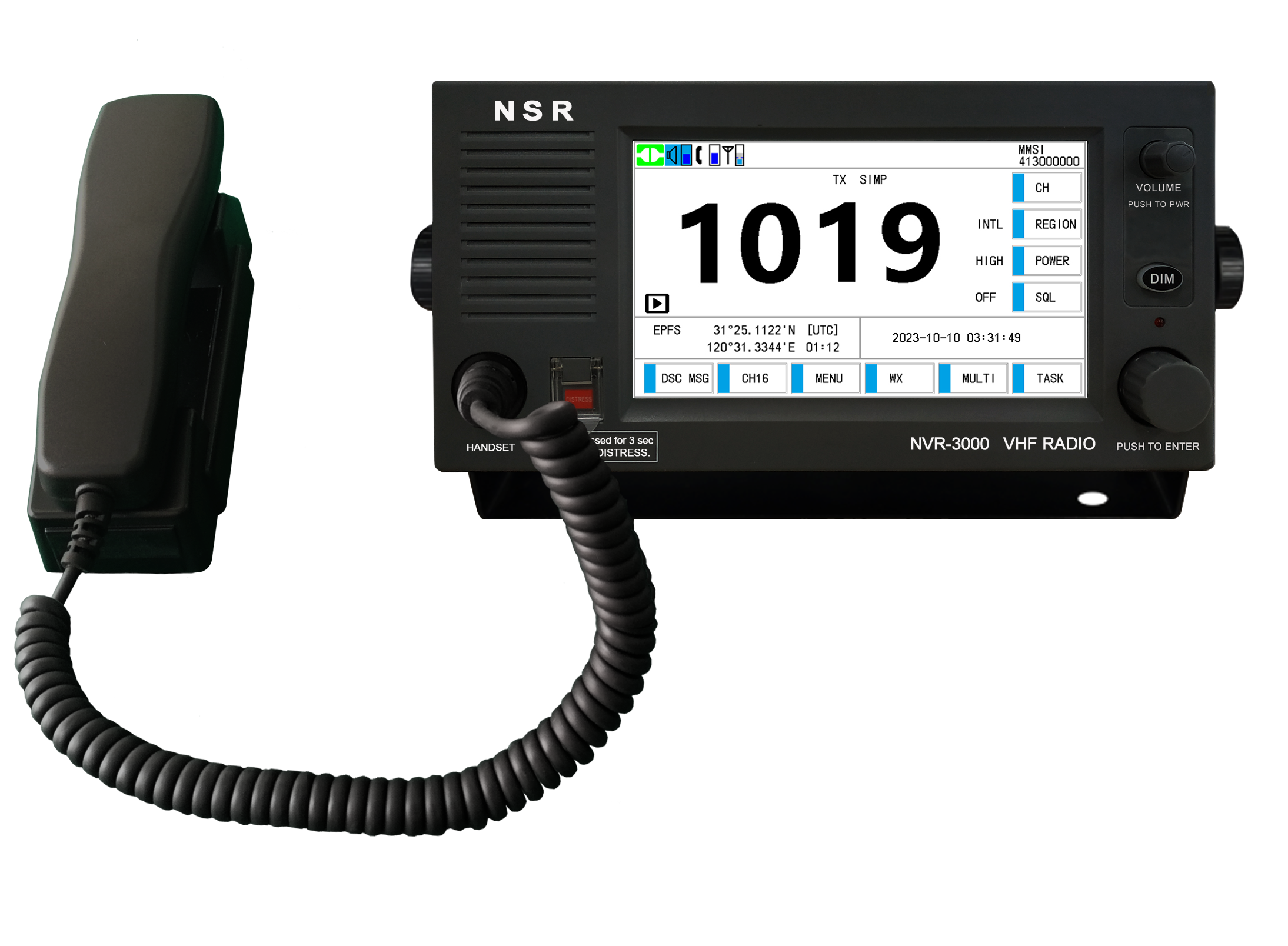

          NVR-3000 VHF RADIO (CLASS A)



              Published on: 2020-09-27



          【FEATURES】
          - Meet the latest ITU standards.
          - Large 7-inch color display.
          - Knob & touch screen operation.
          - Replay function available.
          - 4-digit channels available.
          - Dual-watch / Tri-watch function.
          - Audio interface to VDR.
          - Operational dual handsets/wing handsets/remote stations/Tug handset & Mic.
          - Data interface to BAM System/INS.
          - Operational dual handsets/wing handsets/remote stations/Tug handset & Mic.
          - Replay function available.
          - ATIS function available.
          - User channel table configurable.
          - DNV type approval.
          - CCS type approval.


          NVR-3000 VHF RADIO(GMDSS) is a high performance VHF device, capable of voice communication and DSC(digital selective calling) facilities as well.Conforming to the Class A standard set for VHF DSC by ITU and IMO regulations,NVR-3000 can be part of an onboard GMDSS package for vessels of A1, A2, A3 or A4. Interfaces to VDR and BAM system are available on NVR-3000. NVR-3000 comnforms to the regulations of ITU-R M.493-15, IMO MSC.302 (87), IMO MSC.1/Circ.1460/Rev.5, IEC 61097-3, IEC 61097-7, IEC 62923-1, IEC 62923-2, IEC 61162-1 and IEC 62288 etc.


          【SPECIFICATIONS】

           TX Frequency: 156.025～157.425MHz
           RX Frequency: 156.050～163.275MHz
           Working Channel: ITU
           DSC Watch CH:  CH70
           TX Power:  25W(high)/1W(low)
           RX Sensitivity:  ≤2μV(SINAD=20dB)
           Display:  7 inch，color LCD，touch screen
           Interface:
           GNNS Input:  RS422，4800bps
           VDR Output:    600 Ω balanced
           BAM/INS I/O:
           RS422,4800bps
           Printer I/O: RS232,4800bps
           Power Supply: DC 24 V (range 21.6V ~ 31.2V), max 4.5A
          Size:
          		146.9 (H)×311.4 (W)×117 (D) mm (Transceiver)
          Weight:
          3kg
          Compass Safe Distance:
          Standard Compass: 1.20m, Steering Compass: 1.10m  (Transceiver)
          Standard Compass: 0.35m, Steering Compass: 0.30m  (Handset)
          IP Grade:IP22: Transceiver, Handset；IP66: Antenna



          NSR NVR-3000 VHF RADIO BROCHURE.pdf
