          NVR-9000S S-VDR



              Published on: 2020-09-14




          【FEATURES】
          - NSR’s own FFC and FPC adopted.
          - Real monitoring software available for easy check.
          - Flexible configuration for either VDR or S-VDR.
          - Linux O/S used in SVDR system.
          - Large size color LCD with touch screen operation.
          - Data interface to BAM System.
          - NVR-9000S SVDR is designed to comply with the latest IMO regulation MSC.493 (104), IMO MSC.302 (87), IEC 62923-1, IEC 62923-2 and IEC 62288.
          - Float-Free Capsule (FFC) or Fixed Protective Capsule (FPC) can be selected as the storage medium.
          - Both FFC and FPC has the capacity of 64G each.
          - Data Acquisition Unit (DAU) is fitted with LRU (64G SSD).
          - 8 ch of serial ports are available in DAU.
          - DNV type approval.
          - CCS type approval.


          【SPECIFICATIONS】

           Data Acquisition Unit  (DAU)
           Interface:  Ethernet IEC 61162-450 4 ch
           Serial IEC 61162-1/2, RS422 8 ch
           VHF Audio 2 ch
           Microphone 8 ch
           Remote Alarm Unit 1 ch
           USB 1 ch
           DC 24V output:   Remote Alarm Unit (RAU) 1 ch
           Fixed Protective Capsul (FPC) 1 ch
           Float-Free Capsule (FFC) 1 ch
          LRU:
          		 Memory 64 GB
           Recording Duration min 48 hours
           Reserve Battery Capacity: min 2 hours
           Compass Safe Distance：
           Standard Compass
           Steering Compass
           2.00m
           1.20m
           Fixed Protective Capsule (FPC)   Memory 64 GB
           Recording Duration min 48 hours

          		 Beacon Battery Capacity min 90 days

          		 Beacon Battery Life 3 years

          		 Compass Safe Distance Standard Compass: 1.00m
           Steering Compass: 0.55m
           Float-Free Capsule (FFC) Memory 64 GB
           Recording Duration min 48 hours
           Battery Capacity min 168 hours
           Battery Life 5 years

          		 Compass Safe Distance Standard Compass: 0.90m
           Steering Compass: 0.45m
           Data Extension Unit (DEU) (OPTIONAL)
           Interface: Analog Input 8 ch
           Digital Input 64 ch
           Serial IEC 61162-1/2 16 ch
           Ethernet 1 ch
           Compass Safe Distance：
           Standard Compass
           Steering Compass
           1.45m
           0.95m
           Video Interface Unit (VIU) (OPTIONAL)
           Interface: VGA 1-2 ch
           Ethernet 1-2  ch
           Compass Safe Distance： Standard Compass
           Steering Compass
           0.95m
           0.55m
           Remote Alarm Unit  (RAU) Serial IEC 61162-1/2, RS422 1 ch

          		 Compass Safe Distance Standard Compass: 0.35m
           Steering Compass: 0.20m
           POWER SUPPLY  Data Acquisition Unit  (DAU)
           AC110V/220V, 0.5～1.5A,
           50/60Hz
           Data Extension Unit  (DEU) DC24V, 0.5A
           Video Interface Unit (VIU) DC24V, 0.3A

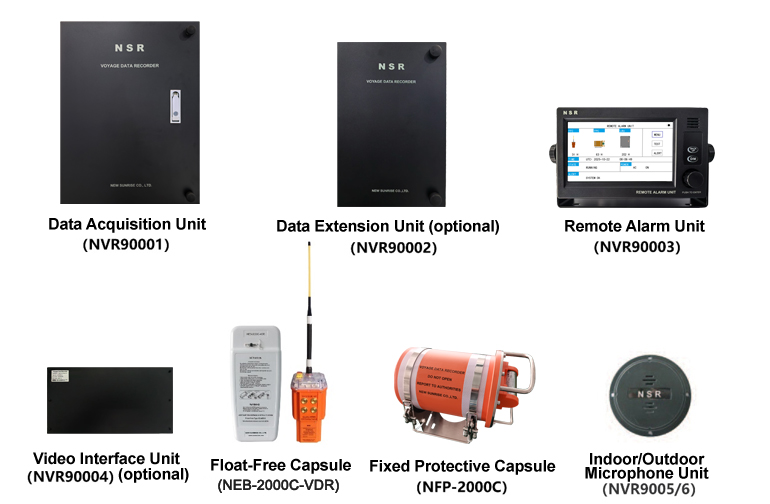

          SVDR 英文總圖 20251105副本.jpg

                  *For SVDR, FPC or FFC may be selected between.
                   NEB-2000C-VDR/NFP-2000C is supplied together with a Junction Box (NEB205) and cable (30m).



          NSR NVR-9000S S-VDR BROCHURE.pdf
