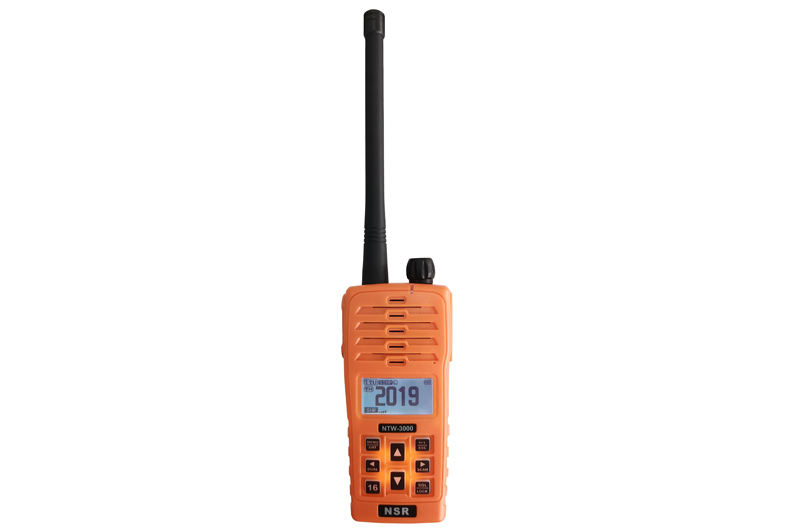

NSR's new generation of two-way VHF radio：
【FEATURES】
- Watertight design.
- Either primary battery or secondary battery is available.
- 4-digit channels available.
- External MIC/Speaker can be attached.
- CCS type approval.
【SPECIFICATIONS】
| TECHNICAL SPECIFICATIONS | |
| Frequency Range: | 156.000 ~ 161.450MHz (TX) 156.000 ~ 163.425MHz (RX) |
| Operating Channels: | 33 channels（default） |
| Operating Hours: | ≥8 hours (TX10%, RX10%, Standby80%) |
| Output Power: | HIGH 3W / LOW 1W |
| BATTERY REQUIREMENTS | |
| Storage Life for NBT800: | Max 4 years on board (See Note1) |
| STORAGE TEMP.: | -40°C~ +70°C |
| COMPASS SAFE DISTANCE: | Standard Compass: 0.25m, Steering Compass: 0.20m |
| SIZE & WEIGHT | |
| Size: | 277.5 (H) ×60.8 (W) ×44.7 (D) mm |
| Weight: | 250g (Transceiver + Antenna + Emergency Battery) |
*Note1: It is recommended that the battery can be stored at the dealer/agent max 1 year since purchased and it should be replaced in 4 years after supplied to a vessel.
【EQUIPMENT LIST】
STANDARD:
| - Transceiver & Antenna | NTW-3000 | 1 pc |
| - Emergency Battery Pack | NBT800 | 1 pc |
| - Rechargeable Battery Pack | NBT800C | 1 pc |
| - Battery Charger | NBT800CU | 1 pc |
| - AC/DC Adaptor | NBT200CUA | 1 pc |
| - Belt Clip | 1 pc | |
| - Wrist Rope | 1 pc |
NSR NTW-3000 TWO-WAY VHF RADIO BROCHURE.pdf
