【FEATURES】
- Designed for marine use,

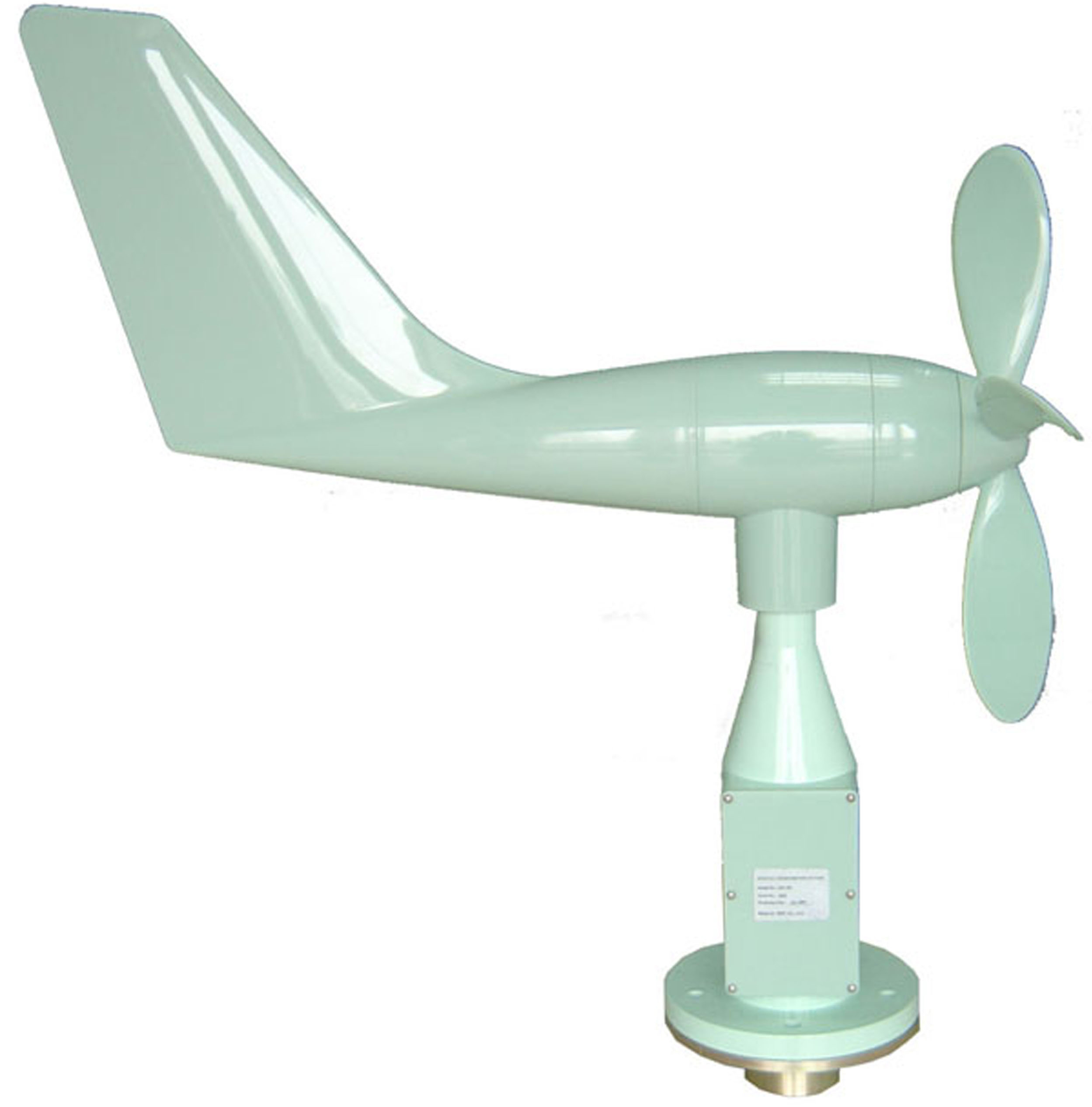

- With case made of nylon and PC material, AM-100 can stand strong wind of 60m/s and can be installed outdoor without corrosion.
- Can support up to 4 display units to indicate wind speed and direction at four areas onboard.
- Maximum 6 ports of RS422 output are available to provide wind data to other navigation devices.
- True wind speed/direction available.
- CCS type approval.
【SPECIFICATIONS】
| Wind Range: | Wind direction 0～360° Wind velocity 0～60 m/s |
| Accuracy: | Wind direction ±5° Wind velocity ±(0.5+ V×5%) m/s |
| Power Supply: | AC 100V ~ 240V |
| Output Data: | NMEA 0183 (6 ports, RS422), 4800bps |
| Input Signal: | Gyro Compass, NMEA 0183, RS422 Speed Log, NEMA 0183, RS422 |
| Display Capacity | Max 4 Indicator Units to be connected |
| Environment: | Outdoor -30℃～+70℃ |
| Weight: | 4.3kg (Transmitter) |
| Size: | 627(H) × 605(L) × 243(propeller diameter) mm (Transmitter) |
| Compass Safe Distance： | ≥0.05m |
| IP Grade: | IP22 (Display Unit, Junction Box, Remote Button), IP66 (Transmitter, Watertight Box) |
NSR AM-100 ANEMOMETER BROCHURE.pdf
