          NES-3000 ECDIS



              Published on: 2020-09-14

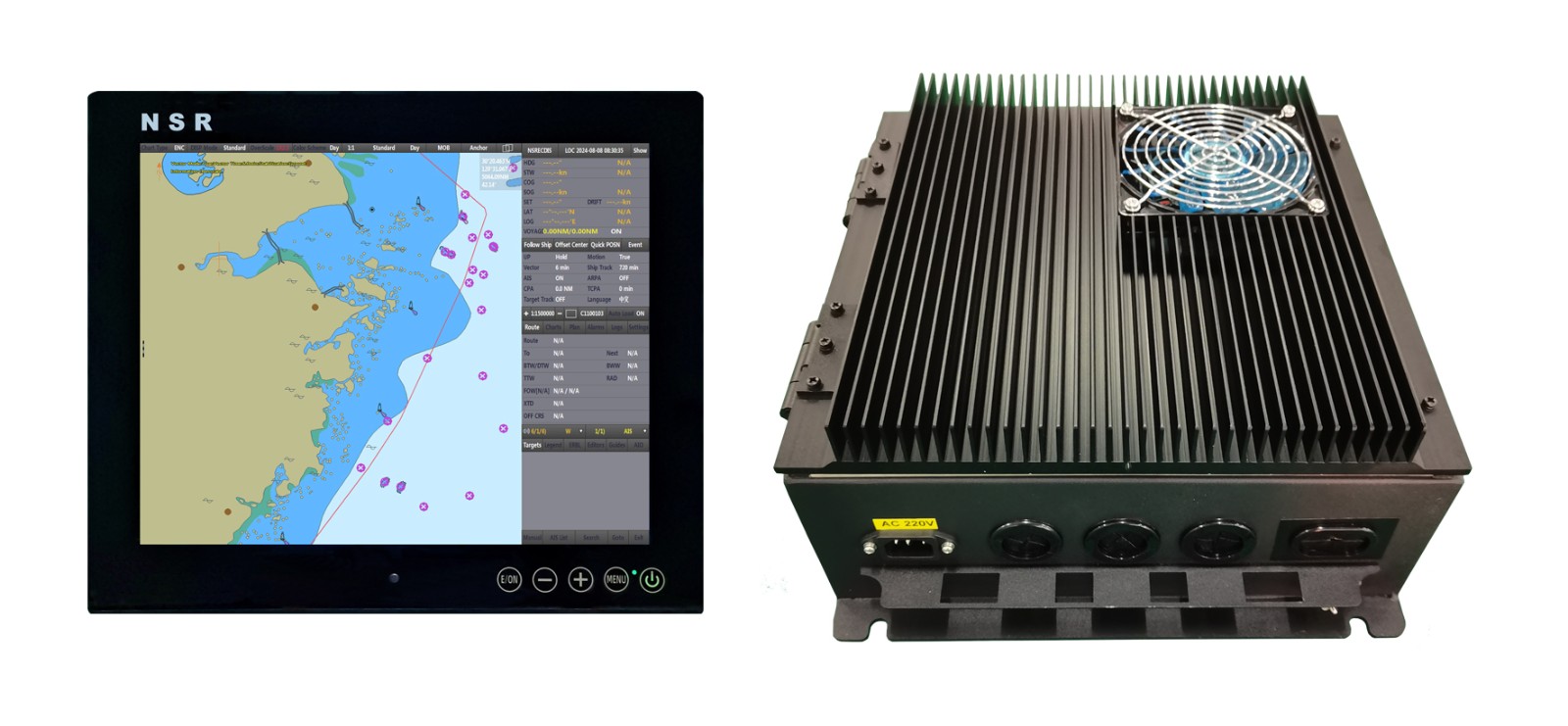

          NES-3000 19 inch 20250123副本.jpg
          【FEATURES】
          - Compliant with IMO MSC.232 (82), IMO MSC.191 (79), IEC 61174, IEC 62288, IHO S52 standard, etc.
          - ENC display, illimitable zoom.
          - NMEA port×8, RS23 port×2.
          - Multi-size Displays to satisfy different vessels.
          - Large color LCD with touch screen operation.
          - Compatible with UKHO AIO data.
          - Compatible with AIS & ARPA Radar overlay display.
          - Aluminum case used.
          - Real time update ENC by E-Mail.
          - Navlog inside for nonpape log record.
          - Table or flush mounting for the display unit.
          - CPA/TCPA calculate.
          - Multi-route design.
          - CCS type approval.



          【SPECIFICATIONS】
           DISPLAY UNT

           Resolution:
           1280×1024 (19 inch), 1920×1080 (24/26 inch)
           Display Size:
           19 inch / 24 inch / 26 inch
           Weight:
           8.25 kg (19 inch) / 9.8 kg (24 inch) / 12.5 kg (26 inch)
           MAIN UNIT (CONTROL UNIT)

           H/W:
           Intel Core i5
           8G DDR4 RAM
           128G SSD
           USB×4，LAN×2, HDMI×1
           NMEA×8, RS232×2, VGA×1
           Power:
           AC110V/220V
           Size:
           325（W）×370（H）×154.4（D）mm
           Weight:
           12kg
           IP Grade:
           IP22
           S/W

           ENC Update:
           USB
           OPERATION UNIT

           Operation Method:
           Mouse, Keypad
          COMPASS SAFE DISTANCE
          Main Unit / NES-3000PStandard Compass: 0.45m, Steering Compass: 0.25m
          19" Display Unit / NDU-190Standard Compass: 0.70m, Steering Compass: 0.40m
          24" Display Unit / NDU-240Standard Compass: 0.85m, Steering Compass: 0.40m
          26" Display Unit / NDU-260Standard Compass: 0.80m, Steering Compass: 0.45m
          EDITION
          NES-3000 Software Version
          		V3.0.1
          IHO S-526.1.1
          IHO S-52 Preslib4.0.(3)
          IHO S-57
          		3.1
          IHO S-611.0
          IHO S-631.2.(1)
          IHO S-643.0.(3)



          NSR NES-3000 ECDIS BROCHURE.pdf
