【FEATURES】
- Fully complying with the latest international regulation, IMO MSC.74 (69), IMO MSC.302 (87), ITU M.1371-5,IEC 61993-2, IEC 62923-1, IEC 62923-2, etc.
- GPS、BDS、GLONASS positioning mode.
- 7-inch color LCD, touch screen operation with adjustable brilliance.
- Interface for RADAR, ECDIS, BAM, GYRO and external GPS equipment.
- Compatible with AIS AtoN, AIS SART, AIS MOB, AIS EPIRB.
- Built-in isolated DC/DC with wide range input.
- Support all NEMA versions for GNSS/HTG input.
- Data interface to BAM system.
- High stability and easy maintenance.
- CCS type approval.
- DNV type approval.
【SPECIFICATIONS】
| Frequency: | 156.025 ～162.025MHz |
| Default Channel: | AIS 1, AIS 2 |
| DSC Channel: | CH70 (156.525MHz) |
| TX Power: | 12.5W (High) / 1W (Low) |
| I/O Interface: | RS422 |
| Power Supply: | DC24V（range 18V~38V） |

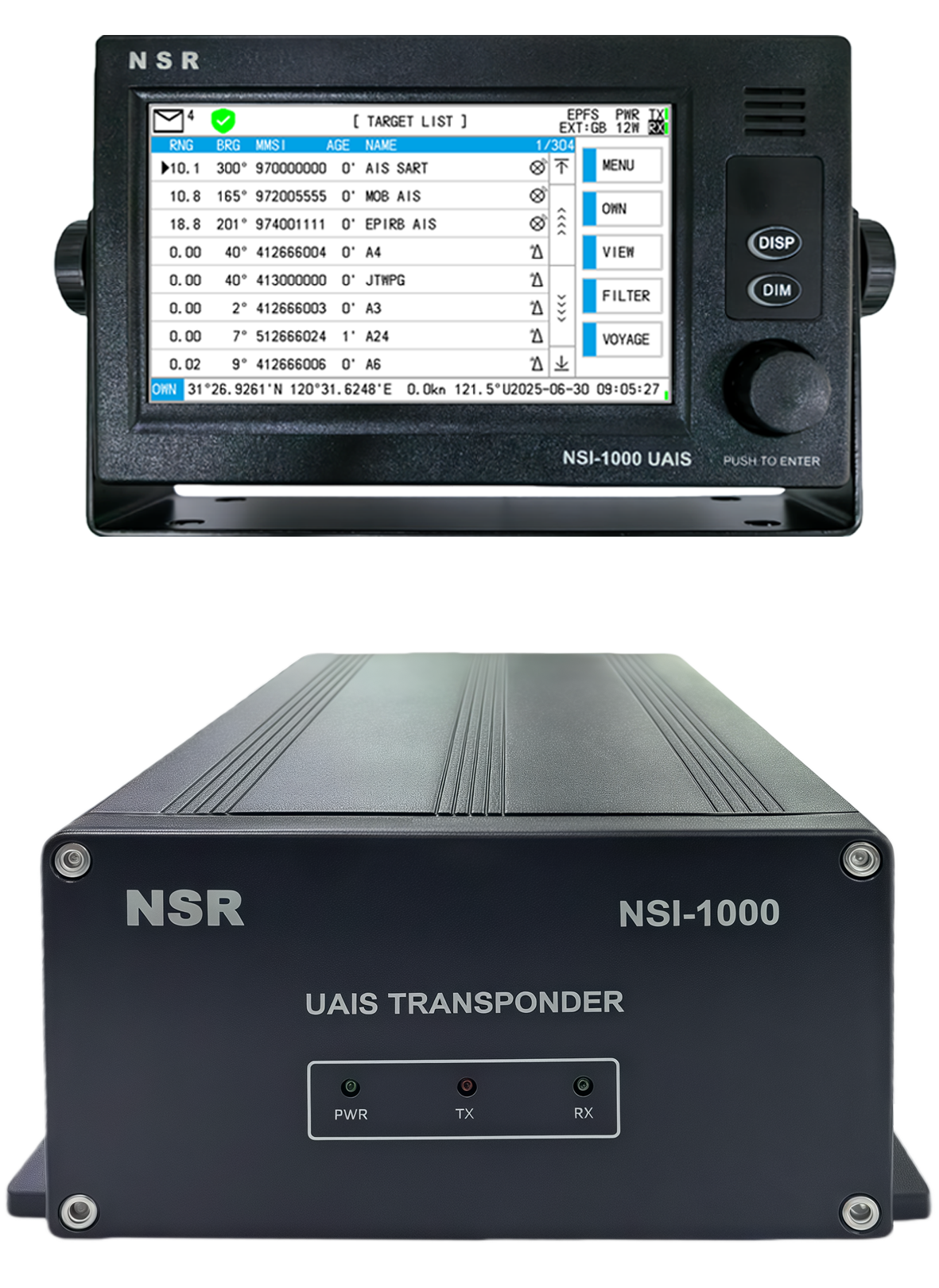

| Size: | 81(H) x 174 (W) x 257(D) mm (Transponder) 145(H) x 264 (W) x 83(D) mm (MKD) |
| Weight: | 2.3kg (Transponder) 1.25kg (MKD) |
| Compass Safe Distance： | Standard Compass: 0.30m, Steering Compass: 0.15m (Transponder) Standard Compass: 0.35m, Steering Compass: 0.25m (MKD) |
| IP Grade: | IP22 (Trsnsponder, MKD), IP66 (Antenna) |
NSR NSI-1000 AIS CLASS A BROCHURE.pdf
