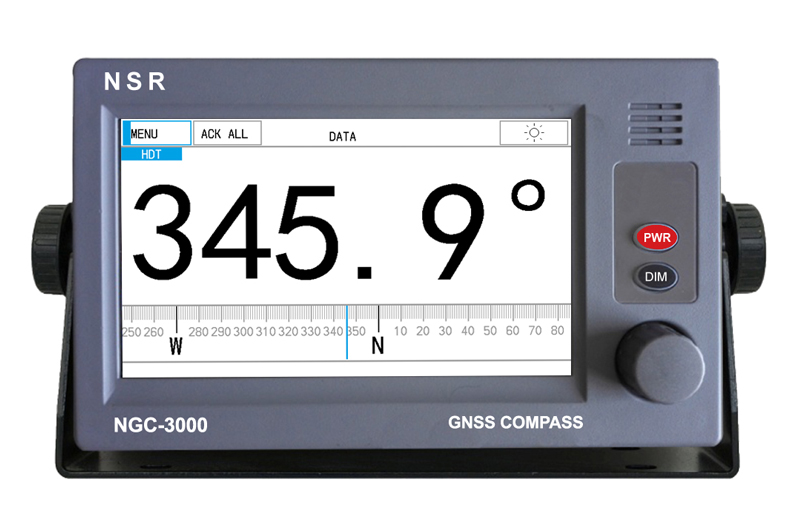

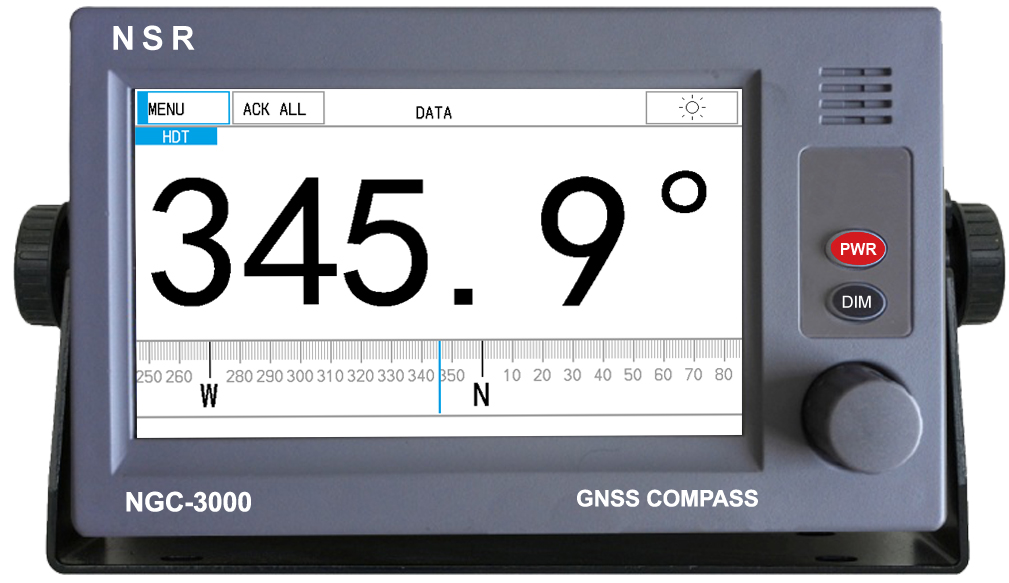

          NGC-3000 THD (GNSS METHOD) / GNSS



              Published on: 2020-09-15



          【FEATURES】
          - Determine the heading of a ship.
          - Highly accurate heading of 0.4° RMS.
          - Full GNSS with GPS, BDS, GLONASS, GALILEO.
          - Both THD (transmitting heading device) and GNSS.
          - Large LCD, 7-inch/color, touch screen operation.
          - Highly accurate SOG，COG，ROT and position.
          - Multi outputs of RS422 & LAN.
          - Data interface to BAM System/INS.
          - Up to five display modes available.
          - Compliant with IMO MSC.116(73) for THD.
          - Maintenance-free design.
          - CCS type approval.
          【SPECIFICATIONS】
           Model NGC-3000
           GENERAL
           Heading Accuracy: 0.4° RMS
           Heading Resolution: 0.1°
           Tracking rate of turn: 45°/sec
           Tracking acceleration: 1G
           Pitch/roll angle: ±60°
           Receiving frequencies: GPS L1/L2, BDS B1/B2, GLONASS L1/L2, Galileo E1/E5b
           Position Accuracy: 1.5m
           Speed Accuracy:
           0.03m/s
           Position Fixing Time: <30s
           Data Output Rate: max 50Hz
           DISPLAY SECTION
           Display System:  7 inch, color LCD, touch screen operation,
           154(W)×87(H) mm
           Resolution: 800 x 480 dots
           Display Mode:    DATA (Heading, NAV data), PLOTTER, TURN,
           COMPASS, SATELLITE
           INTERFACE
           Output Data:
           2 IEC-61162-1 Ed4, Ed5, NMEA 1.5, 2.0, 2.3
           Transmission Speed: 4800/9600/19200/38400 bps (selectable)
           BAM/INS In/Out: ACN, ALC, ALF, HBT
           Data Sentences:
          HDT, THS, ROT, HDG, HDM, HRC, HRM, RMC, VTG,
          ZDA, GLL, GGA, DTM, GNS, RTE, WPL, RMB, BOD, APB
           ENVIRONMENT  CONDITION
           Temperature Range: -20℃~+55℃ operational
           -30℃~+70℃ storage (Antenna Unit)
           IP Grade:
           Antenna Unit: IP66
           Processor Unit & Display Unit: IP22
           Compass Safe Distance:
           Standard Compass: 0.40m, Steering Compass: 0.25m  (Display Unit)
           Standard Compass: 0.25m, Steering Compass: 0.15m (Processor Unit)
           Power Supply   DC24V (range 12~36V), 500mA
           Size 174 (W) × 81 (H) × 160 (D) mm (Processor Unit)
           264 (W) × 145 (H) ×  83 (D) mm (Display Unit)
           808.2 (W) × 240.1 (H) × 244.4 (D) mm (Antenna Unit)



          NSR NGC-3000 THD/GNSS BROCHURE.pdf
