【FEATURES】

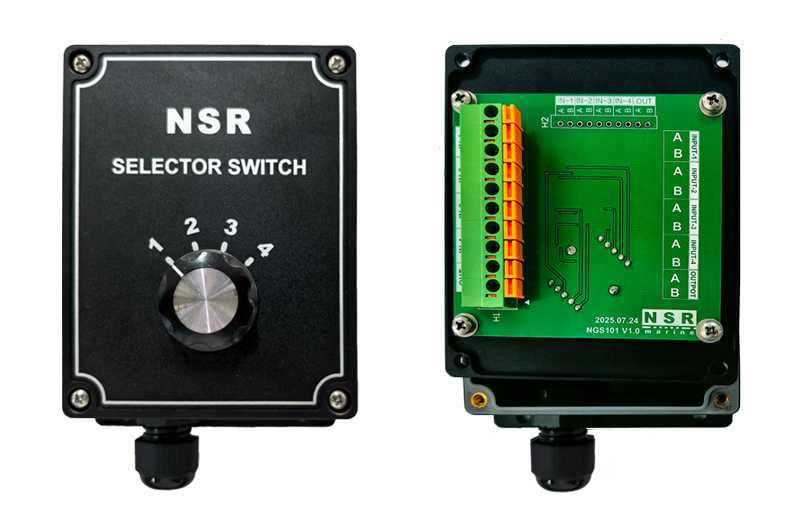

- NGS-100 is a NMEA selector switch to provide 1 outputs from 4 inputs.
- Built-in selector PCB.
- Easy connection.

【SPECIFICATIONS】
Model No: | NGS-100 |
Type of Interface: | RS422 |
Standards: | Conform to IEC 61162-1, IEC 61162-2, NMEA 0183 Standards |
Number of Inputs: | 4 |
Number of Outputs: | 1 |
Size: | 120 (H) × 80 (W) × 43 (D) mm |
NSR NGS-100 NMEA SELECTOR SWITCH BROCHURE.pdf
